Frosted Dynamic Linear Light

Luminaire Ref: L04048YY

Frosted Pixel Linear Lights
Seamless, Diffused LED Illumination

Luminaire Ref: HD-L04100

For designers and architects seeking smooth, dot-free lighting, our Frosted Pixel Linear Lights deliver unmatched performance. Using premium German-engineered processing techniques, these fixtures produce soft, uniform illumination while maintaining excellent light transmittance—ideal for both indoor and outdoor architectural lighting.

Key Features

  • Dot-Free Frosted Finish – Eliminates visible LED hotspots and shadows, creating a clean, seamless glow.

  • No Shadow Gap at Joints – Perfectly aligned segments ensure smooth light continuity.

  • Diffused or Direct Options – Choose between direct or diffused views depending on your design needs.

  • Premium German Materials – Special formula ensures exceptional light transmittance while hiding LED spots.

  • Flexible Installation – Simple cabling and mounting support make large-scale projects faster and easier.

  • Customizable Configurations – Various lengths, colors, and pixel counts to fit any application.

  • Customizable Design – Choose from various fixture lengths, color options (RGB, RGBW, Mono), and pixel configurations (8, 16, or 48 pixels per meter) to match your project requirements.

  • Outdoor Rated & UV-Resistant – IP66 protection ensures reliable performance in harsh weather conditions and extended UV exposure.

  • Professional Light Quality – High luminous intensity (12–16 cd per pixel) with a wide 120° beam angle for vivid, uniform illumination.

  • Long Life & Energy Efficient – 13 W per meter with a 50,000-hour rated lifespan minimizes maintenance and power costs.

  • Advanced Control Compatibility – Supports DMX512, RDM, and SPI for smooth, real-time control of dynamic lighting effects.

  • Auto-Addressable Pixels – Simplifies configuration and saves installation time on large projects.

Wide Range of Color Output

RED

GREEN

BLUE

AMBER

RGB

RGBW

2700K

4000K

5000K

TUNABLE WHITE

RED

GREEN

BLUE

AMBER

RGB

RGBW

2700K

4000K

5 Years Warranty

CE Certified

CB Certified

IP65

5 Years Warranty

CE Certified

CB Certified

IP65

Specifications:

  • No Shadow Gap in joint.
  • Various customization options including fixture length, color, and pixel configuration
  • Direct or diffused views
  • Slim profile
  • Flexible mounting capability
  • Outdoor-rated and UV-resistant
  • Simple cabling
  • Auto-addressable pixels
  • Simple mounting support is applicable to the more extensive installation environment.
  • Employed with Germany processing technique and formula, ensuring excellent light transmittance while hiding LED light spots.
  • Featuring well-distributed light rays, transparent as a whole, without dark space.

Source Type : LED

Lamp Load : 13W/M

Pixel / Meter : 8 Pixel16 Pixel

Luminous intensity : 12 to 16 cd / Pixel

Refresh ratio of the video: 25HZ to 30 HZ

Grayscale : 65,536 levels

LED Chip: Cree | Osram

Input Voltage: DC24V / DC48

Beam Angle: 180°

Color: RGB / RGBW/ Mono Color

Color rendering i(Ra): >82

Control Type: DMX512 / RDM / SPI

Housing: Aluminum + 10mm Solic PC

IP Rating: IP66

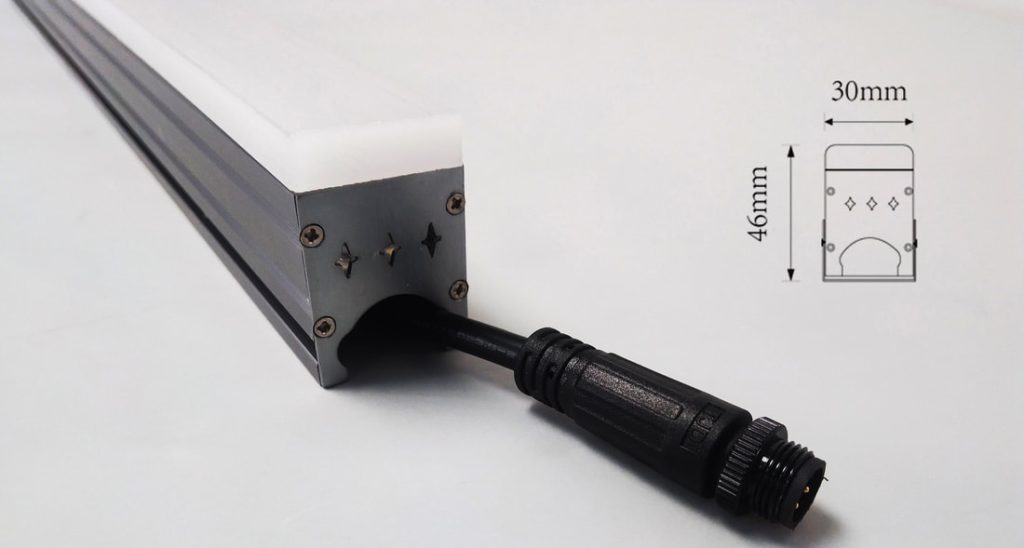

Size: L1000mm*W30*H46mm

Ambient temperature :  -25℃~ +60℃

Lamp Life: 50,000 Hrs

PCB: Excellent heat conductivity aluminum  coefficient of heat conductivity ≥ 2.0w/mk

Optimal distance of viewing:  if 8 pixel per meters suggestion more than 40mters



CB Test: IEC 60598-2-1:2022 | IEC 60598-1:2014 | IEC 60598-1:2014/AMD1:2017



Warranty: 5 Years

Specifications:

  • Why Choose Frosted Pixel Linear Lights?

    • Soft, Uniform Glow – Perfect for façades, bridges, signage, entertainment venues, and retail spaces where diffused, shadow-free light is essential.

    • Architectural Aesthetics – Slim profile blends seamlessly with modern building designs.

    • Efficient & Reliable – Energy-efficient LED technology combined with a long lifespan reduces maintenance costs.

    • Advanced Control Options – Fully compatible with DMX512, RDM, and SPI for dynamic lighting effects.

  • Installation Recommendations

    For optimal viewing:

    • 8 pixels per meter → recommended minimum viewing distance 40+ meters.



Source Type : LED

Lamp Load : 13W/M

Pixel / Meter : 8 Pixel16 Pixel

Luminous intensity : 12 to 16 cd / Pixel

Refresh ratio of the video: 25HZ to 30 HZ

Grayscale : 65,536 levels

LED Chip: Cree | Osram

Input Voltage: DC24V / DC48

Beam Angle: 180°

Color: RGB / RGBW/ Mono Color

Color rendering i(Ra): >82

Control Type: DMX512 / RDM / SPI

Housing: Aluminum + 10mm Solic PC

IP Rating: IP66

Size: L1000mm*W30*H46mm

Ambient temperature :  -25℃~ +60℃

Lamp Life: 50,000 Hrs

PCB: Excellent heat conductivity aluminum  coefficient of heat conductivity ≥ 2.0w/mk

Optimal distance of viewing:  if 8 pixel per meters suggestion more than 40mters



CB Test: IEC 60598-2-1:2022 | IEC 60598-1:2014 | IEC 60598-1:2014/AMD1:2017



Warranty: 5 Years
