Recessed Pixel Linear Light

Luminaire Ref: HD-L20048WX

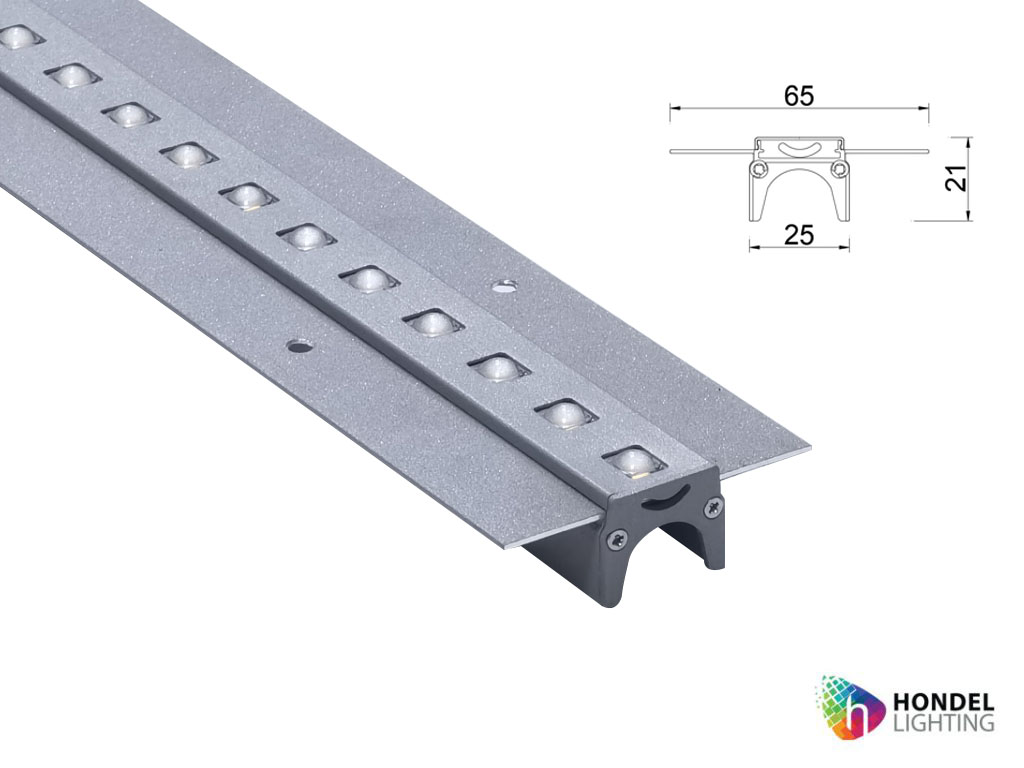

Recessed Pixel Linear Light

Luminaire Ref: HD-L20048WX

CE Certified

3 – 5 Years Warranty

CB Certified

IP66

3-5 Years Warranty

CE Certified

CB Certified

IP65

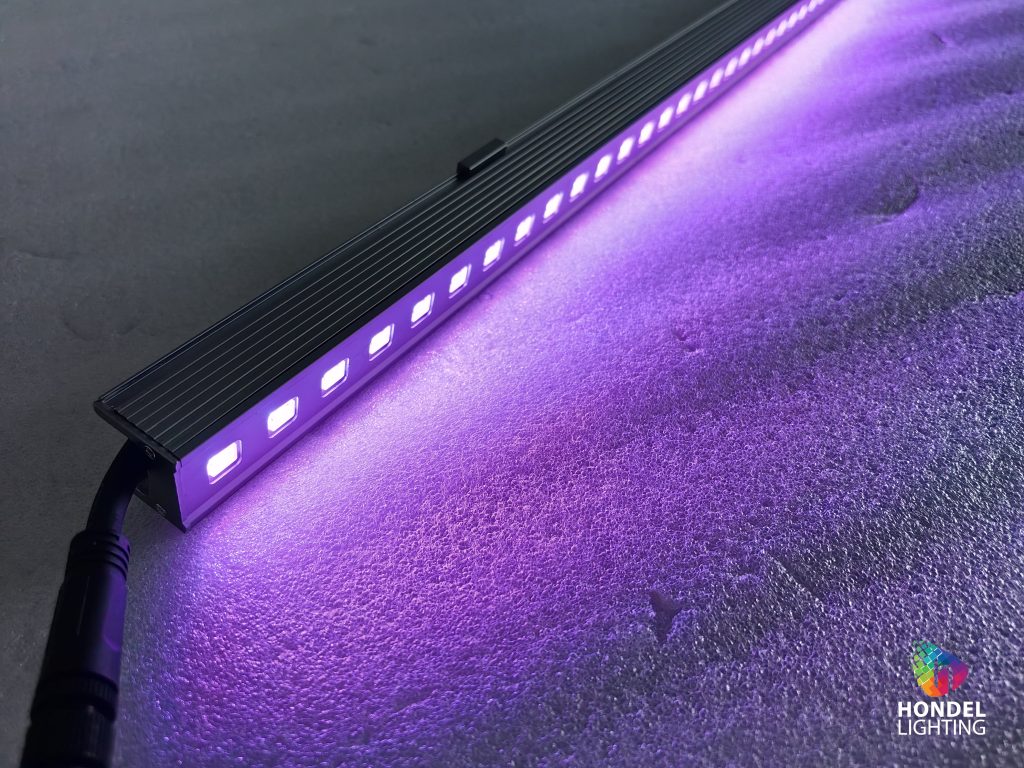

Enhance your architectural, retail, or entertainment spaces with Pixel Linear Lights, a versatile, high-performance LED solution designed for dynamic lighting effects and long-term reliability. Built with premium components and optimized for easy installation, these lights offer precise color control, exceptional brightness, and weather-resistant durability—perfect for both indoor and outdoor projects.

Limitless Scalability – Supports an in-series connection of up to 40 meters from a single power source, ensuring smooth, uninterrupted visuals for large-scale facades and high-rise structures.

Versatile Design Options – Available in 5 standard lengths with customizable color options (RGB, RGBW, Mono) and pixel configurations (8, 16, or 48 pixels per meter) to suit any project requirement.

Ultra-Slim Architectural Profile – A sleek, compact aluminum housing (L1000*W32*H32mm) that integrates seamlessly into modern building designs.

Rapid Installation System – Features an in-series system with quick-lock connectors and auto-addressable pixels, significantly reducing configuration time and labor costs.

Medium-Resolution Graphics – Engineered to create fluid dynamic outlines or medium-resolution media displays for vivid architectural storytelling.

Advanced Control Compatibility – Full support for DMX512, RDM, and SPI protocols, allowing for precise, real-time control of complex lighting effects.

Rugged Outdoor Durability – IP66-rated and UV-resistant housing ensures reliable performance in harsh weather conditions and long-term sun exposure.

Source Type : LED

Lamp Load : 13W/M

Pixel / Meter : 8 Pixel | 16 Pixel | 48 Pixel

LED Chip: Cree | Osram

Input Voltage: DC24V / DC48

Beam Angle: 120°

Color: RGB / RGBW/ Mono Color

Color rendering i(Ra): >82

Control Type: DMX512 / RDM / SPI

Housing: Extruded Aluminum

IP Rating: IP66

Length: 1000mm, 750mm, 500mm, 257mm

Ambient temperature : -25℃~ +60℃

Body Finish : FInish Color can be customize as per project requirements.

PCB: Excellent heat conductivity aluminum coefficient of heat conductivity ≥ 2.0w/mk

CB Test: IEC 60598-2-1:2022 | IEC 60598-1:2014 | IEC 60598-1:2014/AMD1:2017

Warranty: 3 – 5 Years

Can’t find exactly what you need?

Let’s discuss a custom solution

Contact us now

Innovative 48V low-Voltatge Solutions : Solve Your Voltage Drop Chalanges

As a leading DMX linear light manufacturer in China, Hondel Lighting understands the complexities of large-scale facade installations. Traditional 12V or 24V systems often struggle with “Voltage Drop,” leading to uneven brightness and expensive, thick cabling.

Our 48V Facade Linear Light China series is the professional answer to these challenges, offering unparalleled stability and installation flexibility.

Why Choose 48V Technology for Your Project?

Eliminate Voltage Drop: By doubling the voltage from 24V to 48V, we significantly reduce the current (amperage). This allows for perfectly uniform brightness from the first fixture to the last, even on massive building spans.
Long-Distance Power Runs: With our 48V system and a standard 6mm² cable, the distance from your LED driver to the first light can be up to 50 meters. This is the best option for projects where power supplies must be hidden far away from the fixtures.
Reduced Installation Costs: Higher voltage means you can use thinner, more cost-effective cables over longer distances. This reduces your total copper requirements and slashes labor time for wiring.
Simplified Power Architecture: Fewer power injection points are required. This means fewer visible cables on the facade, preserving the architectural integrity of the building.
Cooler Operation: Lower current flow results in less heat generation within the cables and connectors, further extending the lifespan of your entire lighting system.

Key Features of Our 48V Pixel Linear Light China

Extended Lead Compatibility: Supports up to 50m distance from driver to light (using 6mm² cabling).
Seamless DMX Control: Full compatibility with DMX512 and RDM protocols for dynamic media effects.
Industrial-Grade Protection: All 48V models include integrated Reverse Voltage Protection and Current Stabilization
Auto-Addressable Pixels: Fast, software-based configuration for large-scale pixel-mapping.
5-Year Warranty: Direct factory-backed reliability from a trusted DMX linear light manufacturer in China.

Technical Comparison: 24V vs. 48V Systems

Feature	Standard 24V System	Hondel 48V Solution
Max Lead Cable (6mm²)	Approx. 15–20 Meters	Up to 50 Meters
Brightness Uniformity	Risk of dimming at end of run	100% Consistent Brightness
Wiring Complexity	High (Multiple power feeds)	Low (Fewer injection points)
Ideal Project Type	Small/Medium Signage	Skyscrapers, Bridges, Stadiums

Engineering Tip for Consultants

If your project requires placing power supply cabinets in a basement or a centralized electrical room far from the facade, our 48V Facade Linear Light China series is the most reliable and cost-effective specification you can make.

Turning static architecture into a living

digital canvas

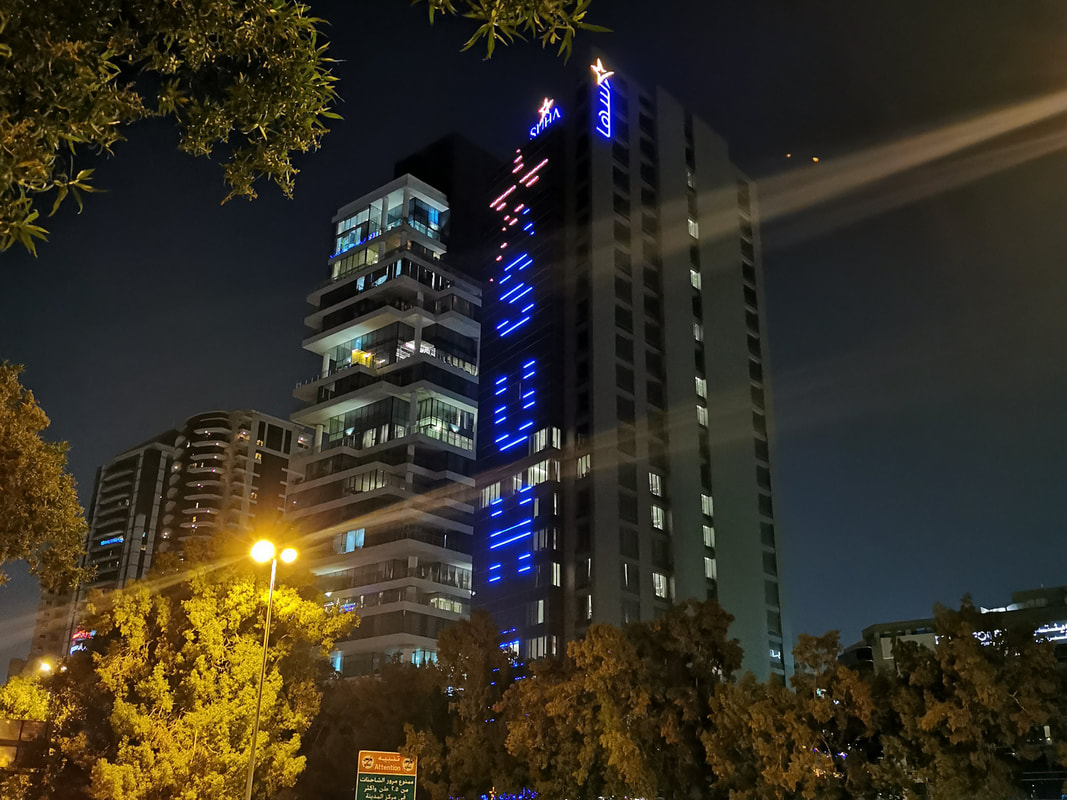

Suha Mina Rashid Media Facade Lighting in Dubai
