Driven by innovation, our experts blend design and engineering to create brilliant visual experiences. We manufacture advanced LED display systems designed to illuminate spaces and elevate modern architecture.

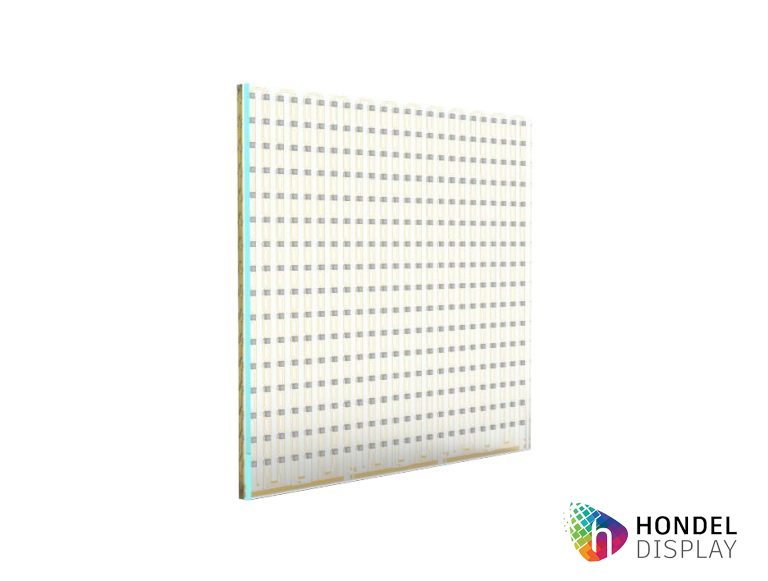

Optica Series

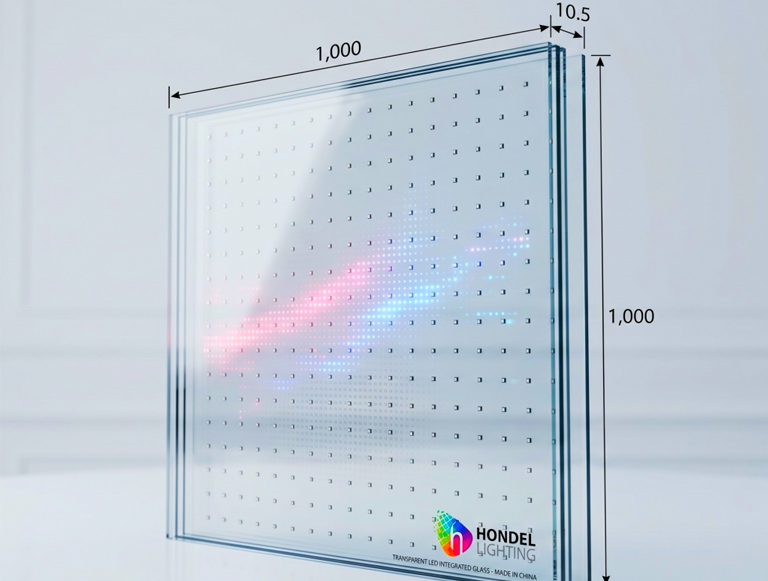

Illume Series

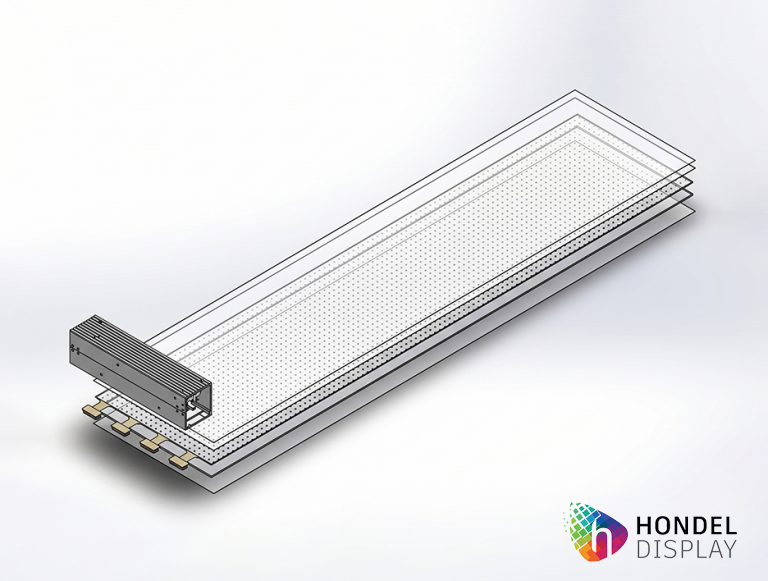

Vitrea Series
As a specialized manufacturer of facade and media facade lighting, we understand that modern architecture demands more than just illumination—it requires seamless digital integration. Backed by the robust production capabilities of our mother company, Shenzhen Hongda United Technology, we engineer architectural-grade digital canvases that bridge the gap between a designer’s vision and structural reality.

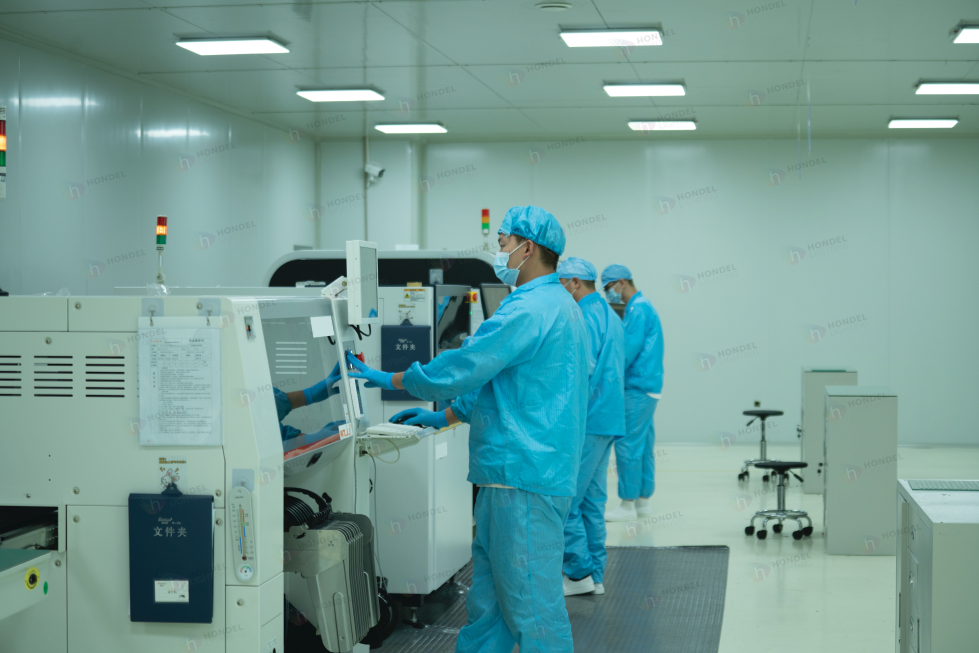

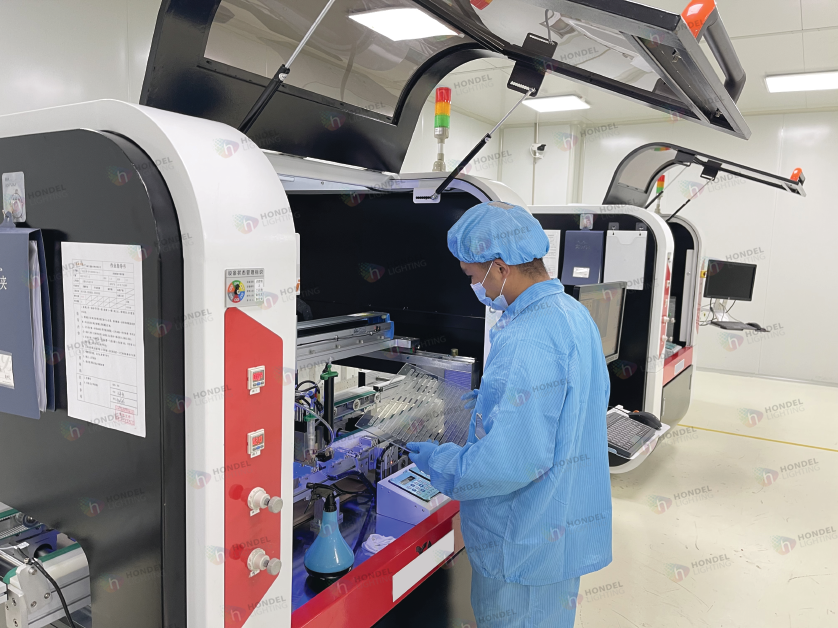

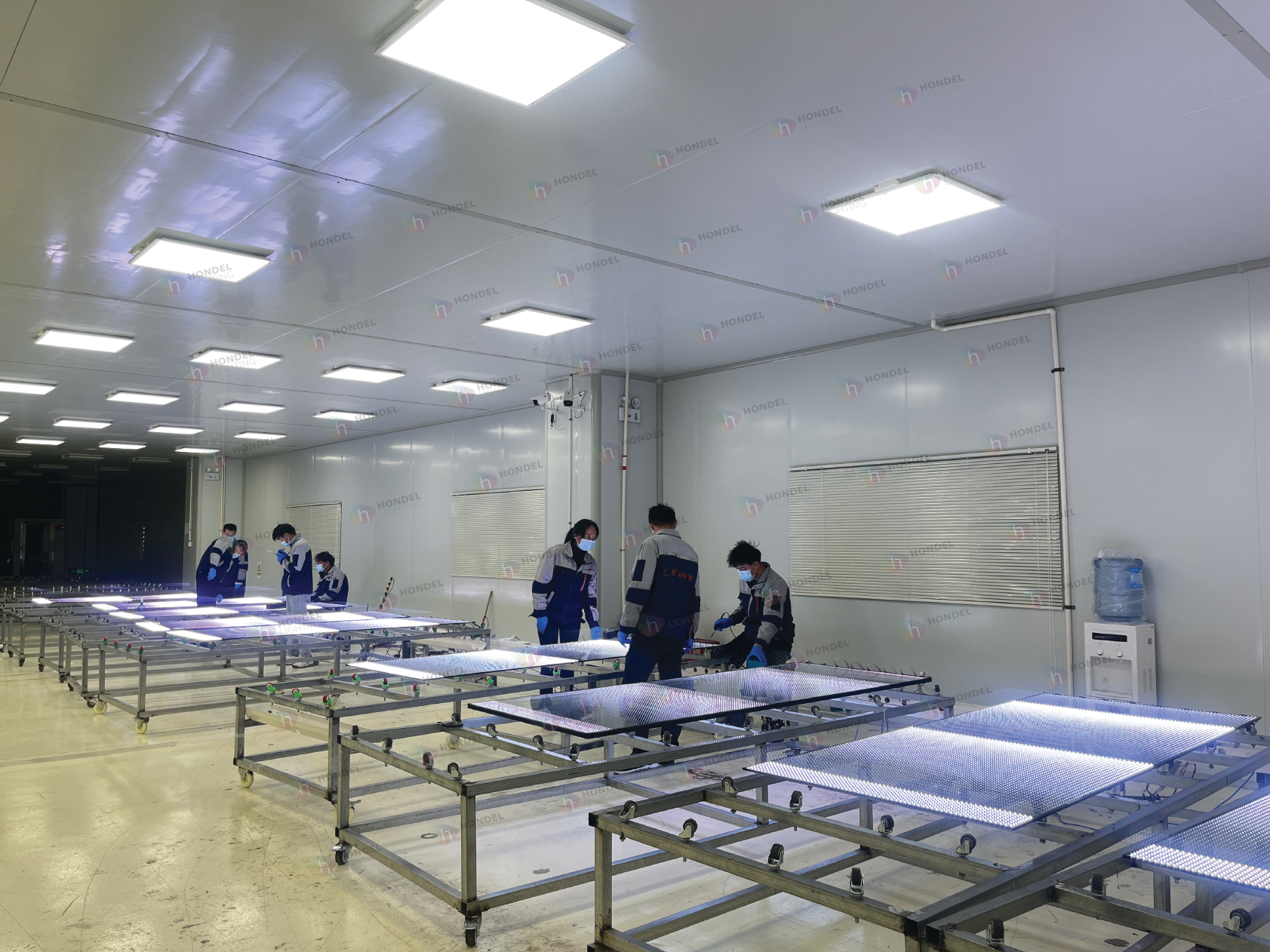

We do not just assemble displays; we manufacture comprehensive lighting and media solutions. Our state-of-the-art production facilities in China are equipped to handle complex, large-scale manufacturing, including custom-sized single glass panels up to 2 meters wide by 6 meters high. This capability minimizes structural seams, providing architects with continuous, high-impact storytelling surfaces.

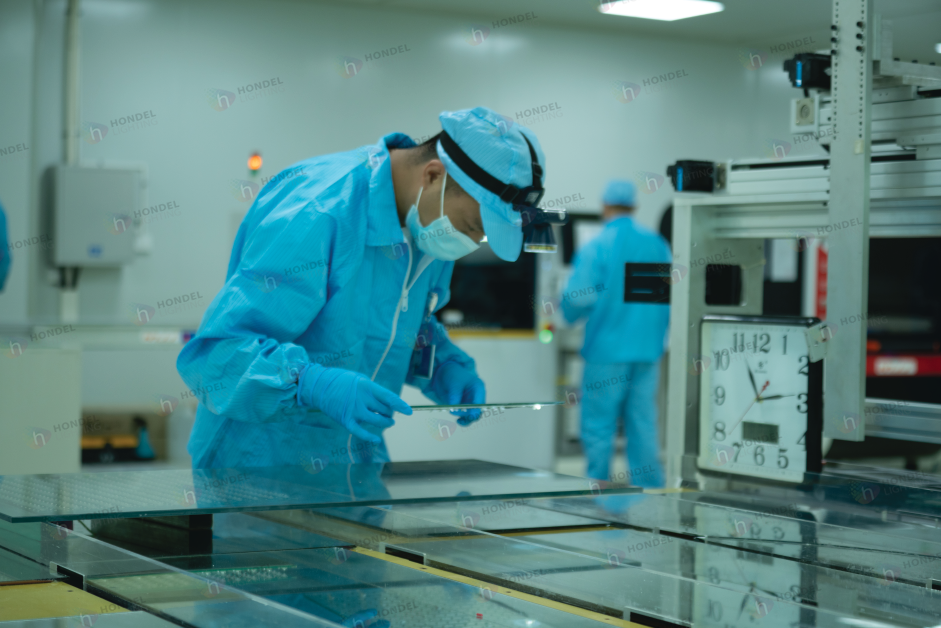

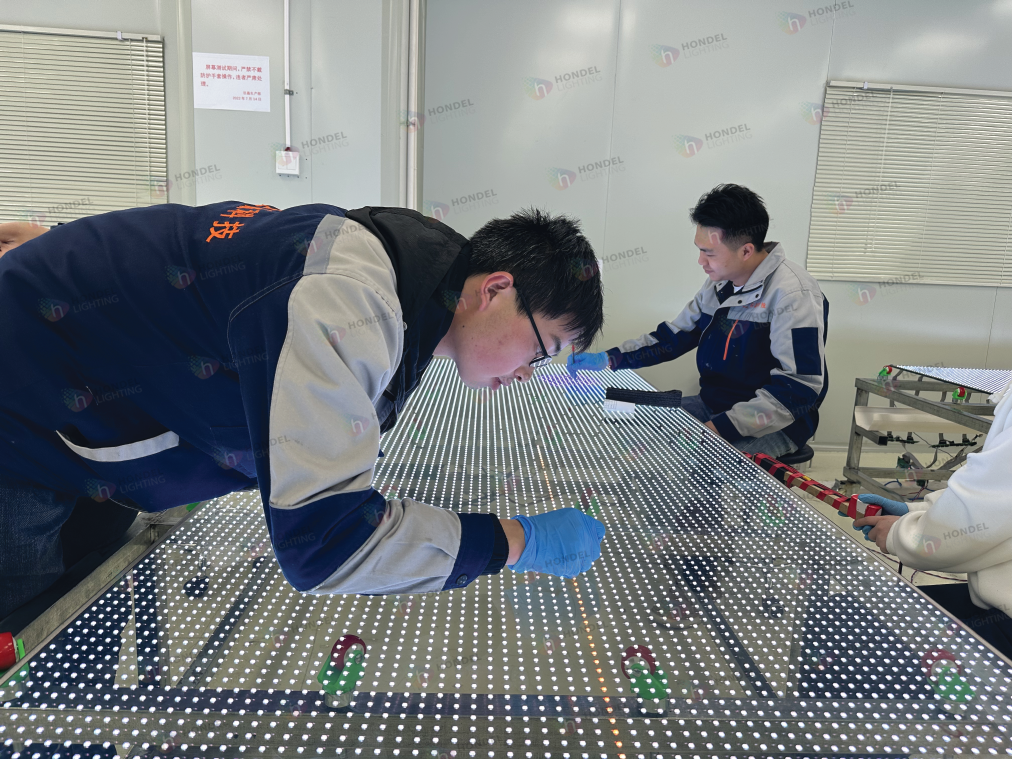

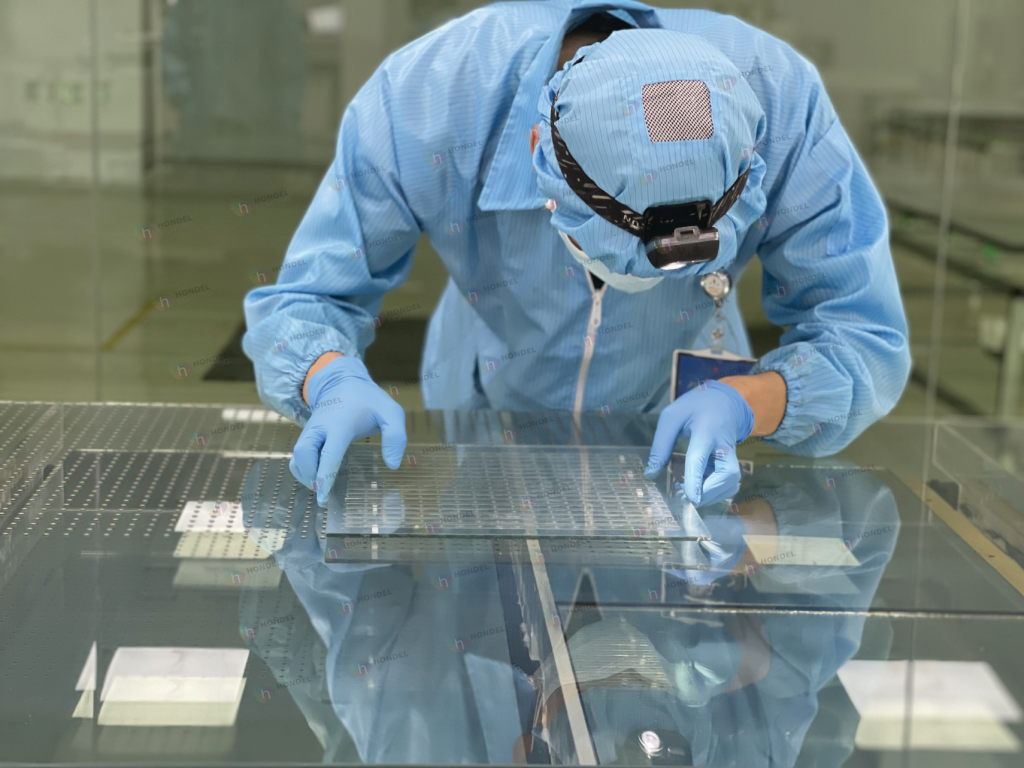

From stringent quality assurance on our ITO (Indium Tin Oxide) transparent conductive materials to rigorous testing of DC 48V power architectures, every display is built for extreme durability and zero-latency data synchronization.
Executing a massive media facade requires flawlessly navigating DMX controls, pixel configurations, and system voltage layouts. Our technical engineering teams have successfully delivered complete, large-scale lighting installations for major commercial hubs, including the South China Mall.
Whether you are a lighting designer mapping out complex visual geometry or a contractor needing reliable, easy-to-install adhesive solutions, our technical sales and engineering teams provide end-to-end support from our manufacturing floor to your global project site.
Cities are changing. Buildings no longer exist merely as concrete structures of steel and glass. They are evolving into intelligent spaces; responsive, expressive, and interactive.
If you are an architect, designer, or procurement manager searching for a reliable LED display manufacturer in China, you have likely run into the same frustrating search results over and over again.
The Best Technology Is Sometimes the One You Hardly Notice For years, installing a large digital display on a building meant preparing for a major construction project. Architects had to consider additional steel frames.
When integrating digital media into architectural facades, the choice between embedded glass screens (Illume Series) and adhesive LED displays (Vitrea Series) dictates the structural engineering of the project.
Embedded Glass Displays (Illume/ICR-O Series): Engineered as a direct structural replacement for standard curtain walls. By utilizing ITO (Indium Tin Oxide) transparent conductive layers, the micro-LEDs and driver chips are permanently sealed within a multi-layer tempered glass “sandwich” (e.g., 6mm + 3mm + 6mm). This offers a seamless, architectural-grade finish with up to 99% transparency and extreme durability. Ideal for new builds or total facade renovations.
Adhesive LED Displays (Vitrea Series): Designed for retrofitting existing architecture. These ultra-thin, lightweight film displays adhere directly to existing glass surfaces. They eliminate the need for heavy steel frames or removing existing curtain walls, making them the superior choice for rapid deployment and interior-facing retail applications.
Our transparent integrated media glass achieves cinematic visual impact without sacrificing the building’s natural lighting. Utilizing an invisible circuitry design, the display appears as standard architectural glass when powered off.
| Pitch Category | Pixel Pitch (mm) | Max Transparency | Brightness (cd/㎡) | Best Application |
| High Density | P6 | 88% | 1500 – 5000 | Luxury retail, eye-level viewing |
| Mid-Range | P10 – P20 | 94% – 96% | 1500 – 4000 | Shopping malls, low-level facades |
| Architectural | P30 – P40 | 98% – 99% | 1000 – 3000 | Skyscrapers, massive media facades |
With a 3840 Hz refresh rate and 16-bit grayscale (28.1 billion colors), the system guarantees flicker-free, broadcast-quality video reproduction across viewing angles up to 160°.
Scaling a media facade across thousands of square meters requires flawless power distribution and data synchronization.
Optimized Voltage: To avoid the voltage drop that plagues large-scale pixel installations, our integrated glass systems utilize a DC 48V power architecture. This allows for longer continuous cable runs and fewer injection points, significantly cleaning up the wiring schematic.
Energy Efficiency: The system maintains an average power consumption as low as 120W/㎡, backed by built-in thermal management that extends the operational lifespan to 100,000 hours.
Pro-Grade Synchronization: The integrated driver-in-lamp LEDs are fully compatible with industry-standard control ecosystems. Whether mapping complex geometry via DMX512 or running high-definition video through NovaStar and Colorlight protocols, the system ensures zero-latency data transmission.
To maintain the architectural integrity of high-end corporate and commercial landmarks, minimizing visible seams is critical. The Illume series supports massive single-panel customizations—scaling up to 2 meters wide by 6 meters high per panel.
The standard curtain wall configuration utilizes a robust 6mm TP + 1.9mm PVB & LED + 3mm TP + 1.52mm PVB + 6mm TP structure, paired with a 12Ar argon gap and 10mm Super White Tempered Glass. This vacuum-sealed IP65 unit provides total immunity to humidity, dust, and temperature extremes ranging from -10°C to +40°C.
With over 12 years of experience guiding architects, developers, and lighting designers, I help bring complex facade lighting and media display to life.
Need technical guidance, design feasibility, or a custom project quote?
Reach out to me directly:
Hondel aims to offer high-quality service to each client. Among our most popular LED products, there is a solution for every lighting problem you may encounter. We are experts in the field of Facade lighting. Additionally, we provide our customers with the most transcendent lighting fixtures – no matter how complicated the project might be.
