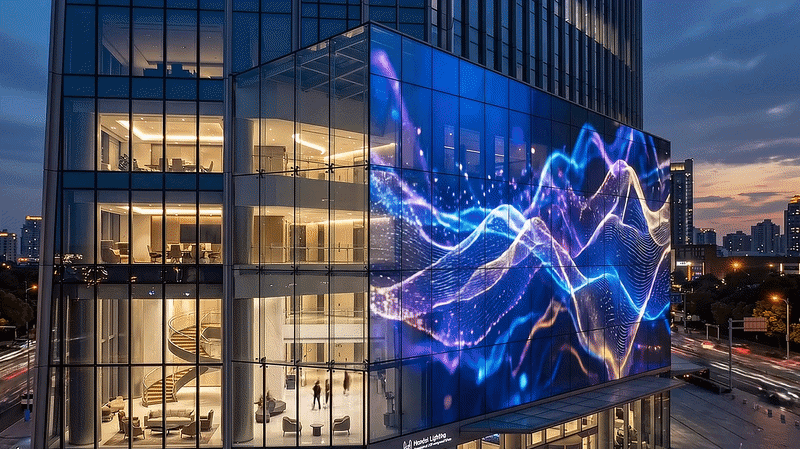

Elevate your architectural vision with the ICR-O Series, a revolutionary Transparent LED Integrated Glass solution that merges high-definition digital media with structural glazing. Engineered for seamless integration, this “Ice Crystal” technology embeds micro-LEDs and driver chips directly into tempered glass using ITO transparent conductive materials, offering unmatched clarity, vivid color reproduction, and structural durability—ideal for landmarks, luxury retail, and high-end corporate facades.

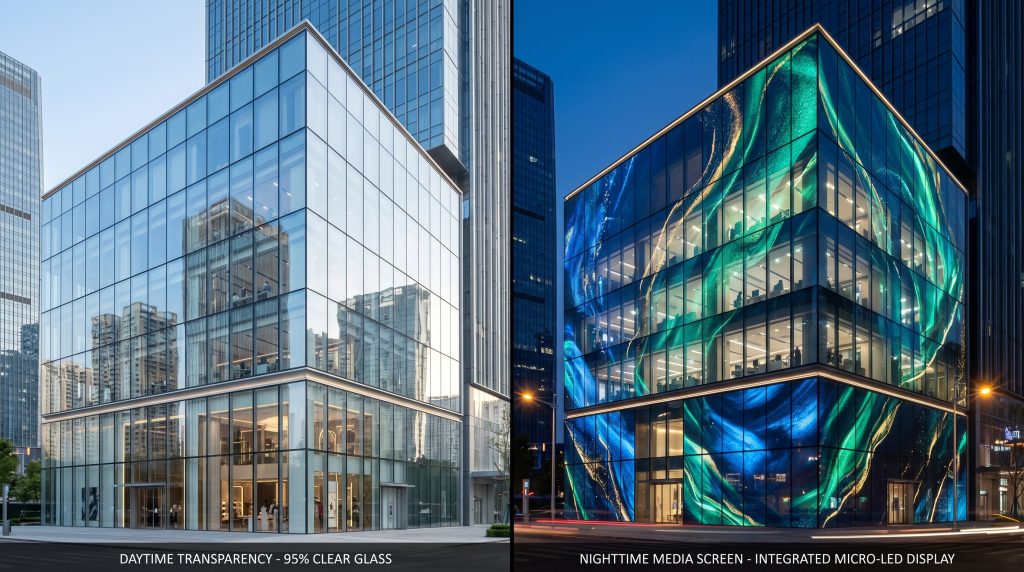

Record-Breaking Transparency – Achieve up to 99% light transmission (at P40 pitch), ensuring natural lighting and unobstructed views while maintaining a crystal-clear aesthetic when the display is inactive.
Invisible Circuitry Technology – Built with ITO (Indium Tin Oxide) transparent conductive layers, eliminating visible wires and bulky hardware for a sleek, “hidden” digital canvas.
Integrated “Sandwich” Engineering – Features a multi-layer tempered glass structure (6mm+3mm+6mm) that shields LEDs from humidity, dust, and external impacts within a vacuum-sealed, high-protection unit.
Large-Scale Seamless Display – Supports massive single-panel customizations (up to 2m wide x 6m high) to minimize structural seams and provide a continuous, high-impact storytelling surface.
Advanced Thermal & Energy Efficiency – Optimized for high-performance cooling with average power consumption as low as 120W/m², reducing operational costs while extending the system’s lifespan to 100,000 hours.
Dual-Sided Visual Impact – Engineered with double-sided display capabilities, allowing your media content to be visible both from the street and within the interior space.
Pro-Grade Control Compatibility – Full integration with industry-standard DMX512, NovaStar, Colorlight, and SPI protocols for precise, real-time synchronization of complex visual effects.
Architectural Resilience – IP65-rated and built with UV-resistant super-white tempered glass, ensuring reliable performance in harsh outdoor environments and temperature extremes from -10°C to +40°C.
The ICR-O Series is a high-definition, high-transparency display carrier that integrates driver chips and LED light-emitting chips directly onto tempered glass using ITO transparent conductive technology. This “hidden circuit” design allows the glass to maintain its structural integrity and aesthetic clarity while serving as a powerful media canvas.
| Parameter | P6 | P10 | P20 | P30 | P40 |
| Pixel Pitch (mm) | 6 | 10 | 20 | 30 | 40 |
| Transparency (%) | 88% | 94% | 96% | 98% | 99% |
| Brightness (cd/㎡) | 1500 / 5000 | 1500 / 4000 | 1500 / 3500 | 1000 / 3000 | 1000 / 2000 |
| Pixel Density (dots/㎡) | 27,833 | 10,000 | 2,500 | 1,100 | 625 |
| LED Type | 2020 | 2020 | 2020 | 3030 | 3030 |
| Max Power Cons. | 800W/㎡ | 800W/㎡ | 600W/㎡ | 600W/㎡ | 600W/㎡ |
| Avg. Power Cons. | 120-240W/㎡ | 120-240W/㎡ | 120-150W/㎡ | 120-150W/㎡ | 120-150W/㎡ |
Refresh Rate: ≥3840 Hz (Cinema-grade flicker-free).
Grayscale: 16-Bit (28.1 billion colors).

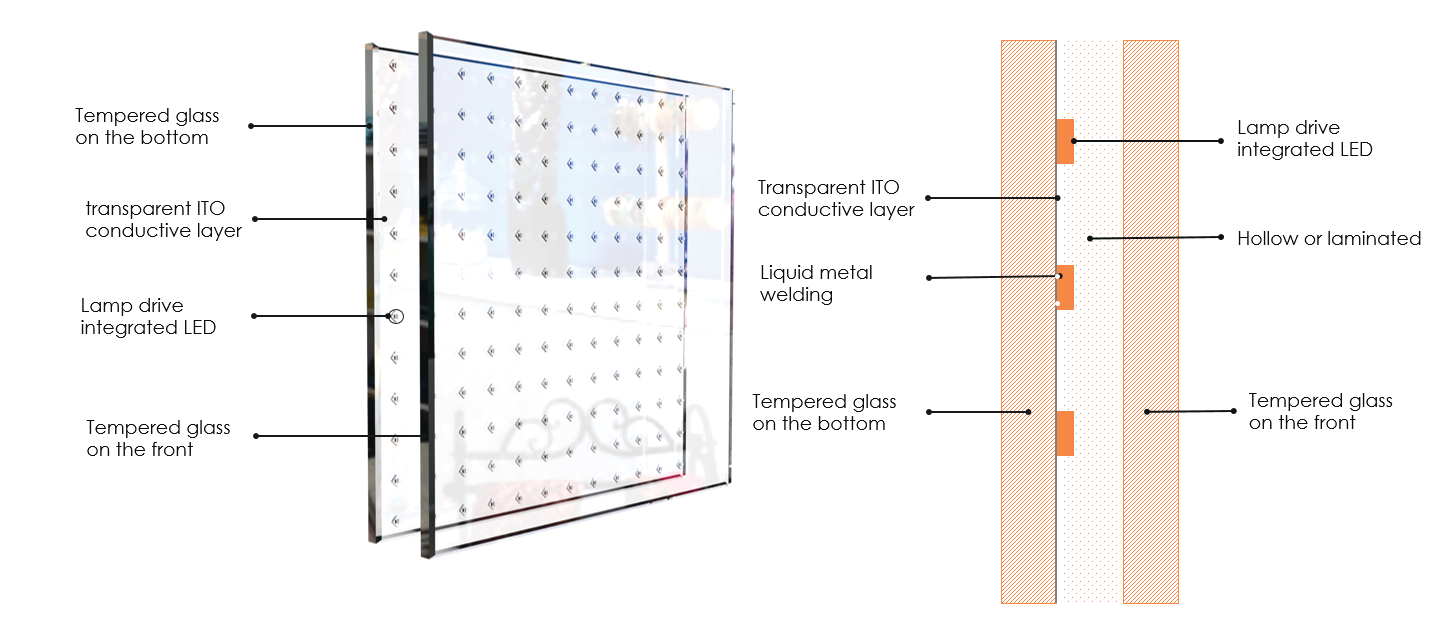

Glass Structure: Default Curtain Wall Style: (6mm TP + 1.9mm PVB & LED + 3mm TP + 1.52mm PVB + 6mm TP) + 12Ar + 10mm TP Super White Tempered Glass (Customizable).
Viewing Angle: 160° Horizontal / 160° Vertical.
Weight: <40 KG/㎡.
Operating Voltage: AC 100V ~ 240V / DC 48V-1000V.
Maintenance: Support for both Front and Rear maintenance.
Protection Level: IP65.
Certifications: CCC, CE, FCC, CB
Invisible Circuitry: Utilizes ITO transparent conductive materials so no wires are visible to the naked eye.
Ultra-High Transparency: Reaches a record-breaking 99% transparency (at P40 pitch), ensuring the screen is practically invisible when not in use.
Integrated Lamp-Driver LED: Employs advanced LEDs where the driver is built into the lamp itself, reducing components and increasing reliability.
Architectural Grade Build: Constructed with super-white tempered glass and high-grade PVB/LED conductive interlayers.
Customizable Dimensions: Supports individual glass panels up to 2 meters wide and 6 meters high to minimize seams in large-scale facades.
Elevate your architectural vision with the ICR-O Series, a revolutionary Transparent LED Integrated Glass solution that merges high-definition digital media with structural glazing. Engineered for seamless integration, this “Ice Crystal” technology embeds micro-LEDs and driver chips directly into tempered glass using ITO transparent conductive materials, offering unmatched clarity, vivid color reproduction, and structural durability—ideal for landmarks, luxury retail, and high-end corporate facades
Record-Breaking Transparency – Achieve up to 99% light transmission (at P40 pitch), ensuring natural lighting and unobstructed views while maintaining a crystal-clear aesthetic when the display is inactive.
Invisible Circuitry Technology – Built with ITO (Indium Tin Oxide) transparent conductive layers, eliminating visible wires and bulky hardware for a sleek, “hidden” digital canvas.
Integrated “Sandwich” Engineering – Features a multi-layer tempered glass structure (6mm+3mm+6mm) that shields LEDs from humidity, dust, and external impacts within a vacuum-sealed, high-protection unit.
Large-Scale Seamless Display – Supports massive single-panel customizations (up to 2m wide x 6m high) to minimize structural seams and provide a continuous, high-impact storytelling surface.
Advanced Thermal & Energy Efficiency – Optimized for high-performance cooling with average power consumption as low as 120W/m², reducing operational costs while extending the system’s lifespan to 100,000 hours.
Dual-Sided Visual Impact – Engineered with double-sided display capabilities, allowing your media content to be visible both from the street and within the interior space.
Pro-Grade Control Compatibility – Full integration with industry-standard DMX512, NovaStar, Colorlight, and SPI protocols for precise, real-time synchronization of complex visual effects.
Architectural Resilience – IP65-rated and built with UV-resistant super-white tempered glass, ensuring reliable performance in harsh outdoor environments and temperature extremes from -10°C to +40°C.
