Discover the Sovix Zenith Series—Featuring Larger Modules, IP66 Waterproof Protection, and Full-Loop Signal Redundancy
The ICR-O Series is a high-definition, high-transparency display carrier that integrates driver chips and LED light-emitting chips directly onto tempered glass using ITO transparent conductive technology. This “hidden circuit” design allows the glass to maintain its structural integrity and aesthetic clarity while serving as a powerful media canvas.
| Parameters | P2.976 | P3.91 | P4.81 | P6.67 | P8 | P10 |
| Pixel pitch | 2.976mm | 3.91mm | 4.81mm | 6.67mm | 8mm | 10mm |
| LED Type | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD1921 |
| Pixel Density | 112896/m² | 65410/m² | 42849/m² | 22500/m² | 15625/m² | 10000/m² |

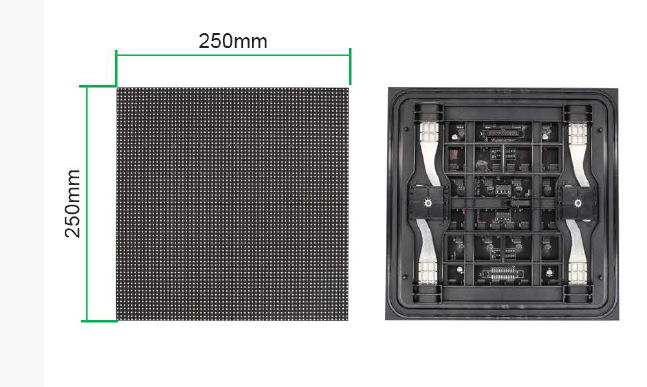

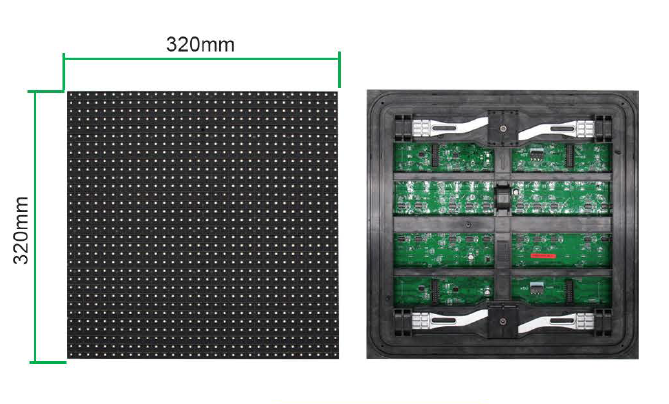

| Module Size | 250x250mm | 250x250mm | 250x250mm | 320x320mm | 320x320mm | 320x320mm |
| Panel Dimension | 1000x1000mm | 1000x1000mm | 1000x1000mm | 960x960mm | 960x960mm | 960x960mm |
| Panel Weight | 45kg | 45kg | 45kg | 45kg | 45kg | 45kg |
| Module weight | 0.8kg | 0.8kg | 0.65kg | 0.84kg | 0.7kg | 0.84kg |
| Maintenance Mode | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance |
| Brightness | 5000cd/m² | 5000cd/m² | 4500cd/m² | 7200cd/m² | 6000cd/m² | 7200cd/m² |
| Gray Grade | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit |
| Viewing Angle | Horizontal >170 Vertical>120 | Horizontal >170 Vertical>120 | Horizontal >170 Vertical>120 | Horizontal >170 Vertical>120 | Horizontal >170 Vertical>120 | Horizontal >170 Vertical>120 |
| Display color | 4096*4096*4096 | 4096*4096*4096 | 4096*4096*4096 | 4096*4096*4096 | 4096*4096*4096 | 4096*4096*4096 |
| Refresh Frequency | 1920-384Hz | 1920-384Hz | 1920-384Hz | 1920-384Hz | 1920-384Hz | 1920-384Hz |
| Drive Mode | 1/8s | 1/8s | 1/13s | 1/6s | 1/5s | 1/2s |
| Protection Degree | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Max Power Consumption | <800W/m² | <800W/m² | <800W/m² | <800W/m² | <800W/m² | <800W/m² |
| Avg Power Consumption | 240W/m² | 240W/m² | 240W/m² | 240W/m² | 240W/m² | 240W/m² |
| Humidity | 10%-95%RH | 10%-95%RH | 10%-95%RH | 10%-95%RH | 10%-95%RH | 10%-95%RH |
| Working Temperature | -20°C-+60°C | -20°C-+60°C | -20°C-+60°C | -20°C-+60°C | -20°C-+60°C | -20°C-+60°C |
| Screen power supply | 220VAC/50HZ+_10% | 220VAC/50HZ+_10% | 220VAC/50HZ+_10% | 220VAC/50HZ+_10% | 220VAC/50HZ+_10% | 220VAC/50HZ+_10% |
| Life span | 100000Hours | 100000Hours | 100000Hours | 100000Hours | 100000Hours | 100000Hours |
Elevate your architectural vision with the ICR-O Series, a revolutionary Transparent LED Integrated Glass solution that merges high-definition digital media with structural glazing. Engineered for seamless integration, this “Ice Crystal” technology embeds micro-LEDs and driver chips directly into tempered glass using ITO transparent conductive materials, offering unmatched clarity, vivid color reproduction, and structural durability—ideal for landmarks, luxury retail, and high-end corporate facades
Record-Breaking Transparency – Achieve up to 99% light transmission (at P40 pitch), ensuring natural lighting and unobstructed views while maintaining a crystal-clear aesthetic when the display is inactive.
Invisible Circuitry Technology – Built with ITO (Indium Tin Oxide) transparent conductive layers, eliminating visible wires and bulky hardware for a sleek, “hidden” digital canvas.
Integrated “Sandwich” Engineering – Features a multi-layer tempered glass structure (6mm+3mm+6mm) that shields LEDs from humidity, dust, and external impacts within a vacuum-sealed, high-protection unit.
Large-Scale Seamless Display – Supports massive single-panel customizations (up to 2m wide x 6m high) to minimize structural seams and provide a continuous, high-impact storytelling surface.
Advanced Thermal & Energy Efficiency – Optimized for high-performance cooling with average power consumption as low as 120W/m², reducing operational costs while extending the system’s lifespan to 100,000 hours.
Dual-Sided Visual Impact – Engineered with double-sided display capabilities, allowing your media content to be visible both from the street and within the interior space.
Pro-Grade Control Compatibility – Full integration with industry-standard DMX512, NovaStar, Colorlight, and SPI protocols for precise, real-time synchronization of complex visual effects.
Architectural Resilience – IP65-rated and built with UV-resistant super-white tempered glass, ensuring reliable performance in harsh outdoor environments and temperature extremes from -10°C to +40°C.
