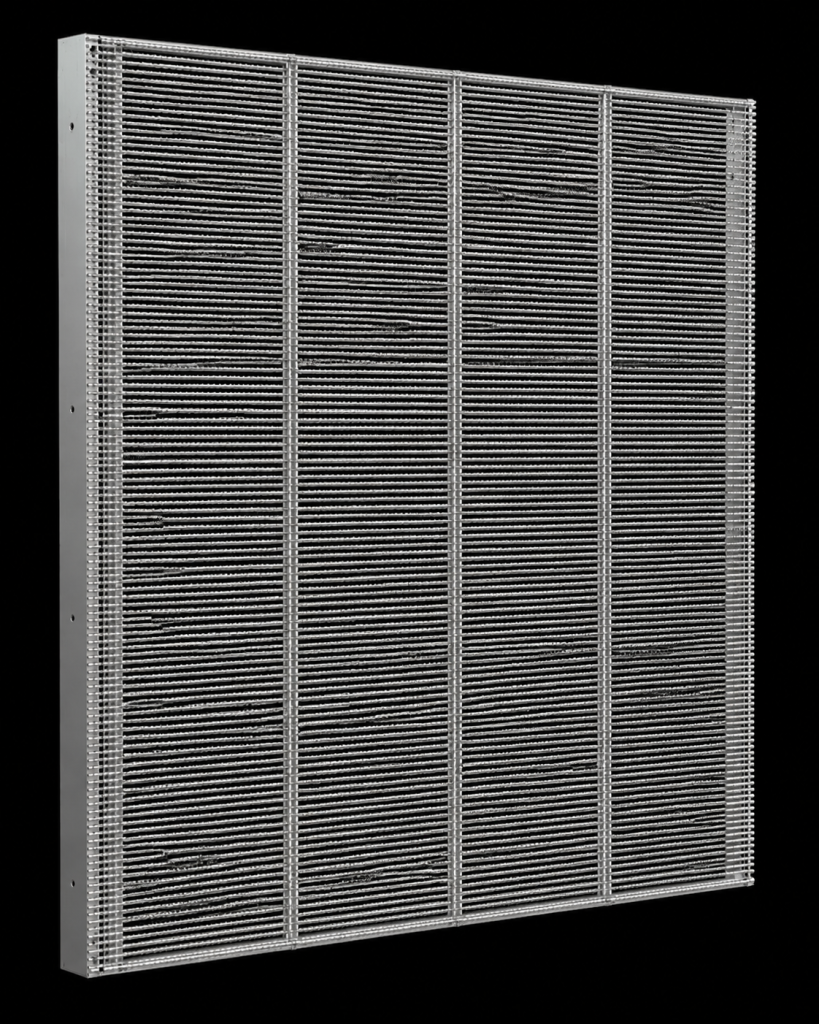

Discover the Sovix SA Series—Featuring Larger Modules, IP66 Waterproof Protection, and Full-Loop Signal Redundancy
| Product Parameter | WI-3.9 Specification | |
| Pixel pitch | H3.9mm-V7.8mm | |
| Pixel density (pixels/m²) | 32,768 | |
| LED | Side-emitting SMD3512 | |
| Permeability | 70% | |
| Box material | Aluminum | |
| Box dimensions (W * H) | 1,000*1,000mm / 1,000*750mm / 750*1,000mm / 750*750mm | |
| Weight | 11 kg/m² | |
| Brightness | 6000nits | |
| Peak power consumption (W/m²) | 600 | |
| Refresh rate | 3840Hz | |
| Color processing | 16 Bit | |
| Perspective | H140° / V140° | |
| Working environment | -10~40°C, 10%~90% no condensation | |
| Input voltage | AC 100~240V | |
| LED life | 100,000H | |
| Installation and maintenance | Front/rear installation, front/rear maintenance |

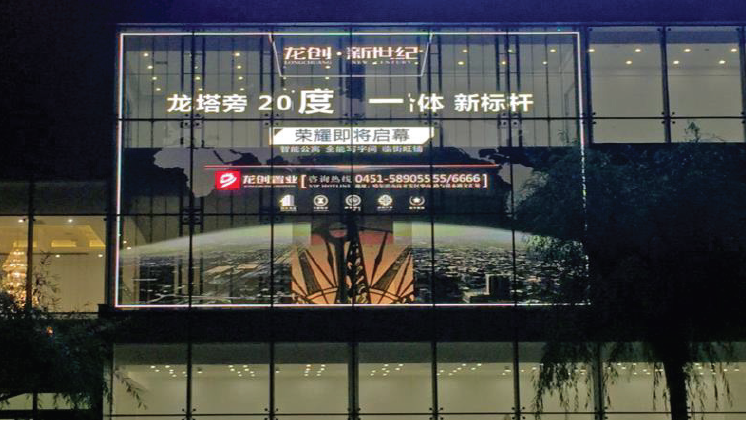

Elevate your architectural vision with the ICR-O Series, a revolutionary Transparent LED Integrated Glass solution that merges high-definition digital media with structural glazing. Engineered for seamless integration, this “Ice Crystal” technology embeds micro-LEDs and driver chips directly into tempered glass using ITO transparent conductive materials, offering unmatched clarity, vivid color reproduction, and structural durability—ideal for landmarks, luxury retail, and high-end corporate facades
Record-Breaking Transparency – Achieve up to 99% light transmission (at P40 pitch), ensuring natural lighting and unobstructed views while maintaining a crystal-clear aesthetic when the display is inactive.
Invisible Circuitry Technology – Built with ITO (Indium Tin Oxide) transparent conductive layers, eliminating visible wires and bulky hardware for a sleek, “hidden” digital canvas.
Integrated “Sandwich” Engineering – Features a multi-layer tempered glass structure (6mm+3mm+6mm) that shields LEDs from humidity, dust, and external impacts within a vacuum-sealed, high-protection unit.
Large-Scale Seamless Display – Supports massive single-panel customizations (up to 2m wide x 6m high) to minimize structural seams and provide a continuous, high-impact storytelling surface.
Advanced Thermal & Energy Efficiency – Optimized for high-performance cooling with average power consumption as low as 120W/m², reducing operational costs while extending the system’s lifespan to 100,000 hours.
Dual-Sided Visual Impact – Engineered with double-sided display capabilities, allowing your media content to be visible both from the street and within the interior space.
Pro-Grade Control Compatibility – Full integration with industry-standard DMX512, NovaStar, Colorlight, and SPI protocols for precise, real-time synchronization of complex visual effects.
Architectural Resilience – IP65-rated and built with UV-resistant super-white tempered glass, ensuring reliable performance in harsh outdoor environments and temperature extremes from -10°C to +40°C.
