Architectural Media Facade Free Form Display
| LED Display Screen Product Technical Specifications | |||
| Parameter / Specification | P1.56 | P1.95 | P2.604 |
| Pixel Pitch (mm) | P1.56 | P1.95 | P2.604 |
| Pixel Structure | COB 1R1G1B | COB 1R1G1B | COB 1R1G1B |
| Pixel Density(dot/m²) | 410881 | 262144 | 147456 |
| Module Size(WxH)(mm) | 260×250 | 260×250 | 250×250 |
| Module Resolution(W*H)(dot) | 160×160 | 128×128 | 96×96 |
| Refresh Frequency(Hz) | ≥7680 | ≥7680 | ≥7680 |
| Illumination(cd/m²) | 3000 | 3000 | 4000 |
| Driver IC | Constant Current Drive | Constant Current Drive | Constant Current Drive |
| Contrast Ratio | ≥10000:1 | ≥10000:1 | ≥10000:1 |

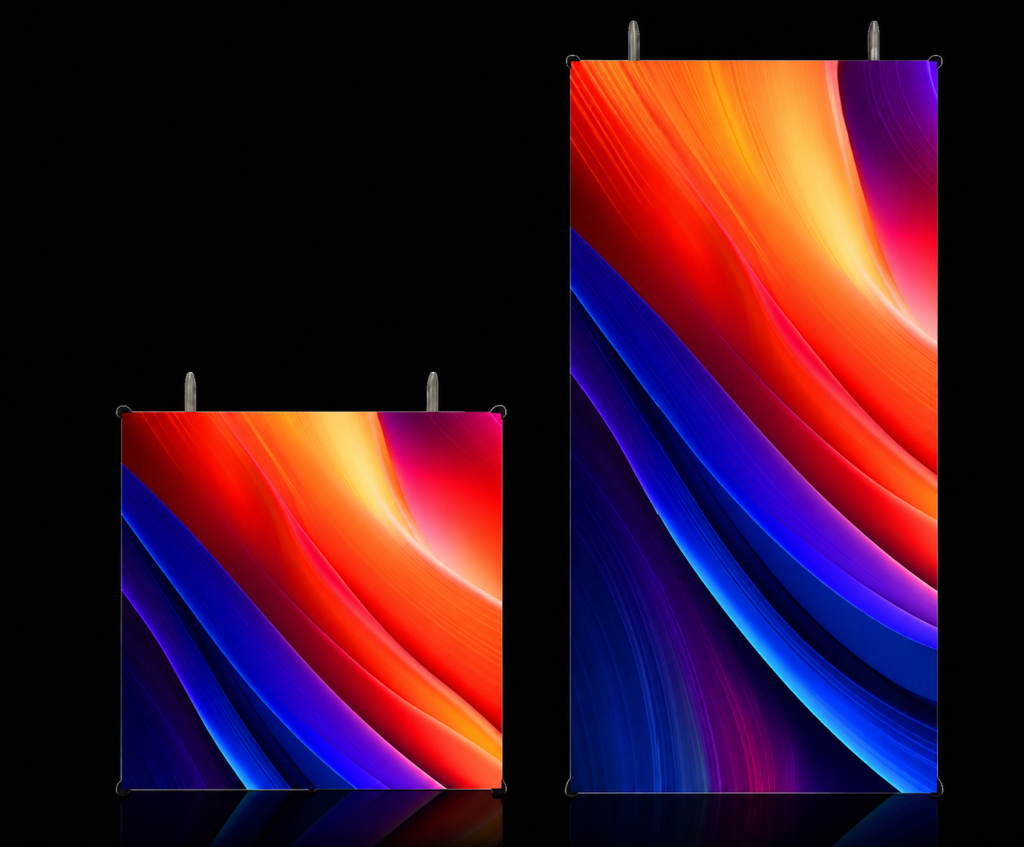

| Cabinet Size(W*H*D)(mm) | 500*500*94 | 500*500 500*1000*94 | 500*500 500*1000*94 |
| Cabinet Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Cabinet Weight(kg) | 8 | 8/13 | 8/13 |
| Scanning Method | 1/20s | 1/16s | 1/8s |
| Installation/Maintenance Methods | Front or back Installation/Maintenance | Front or back Installation/Maintenance | Front or back Installation/Maintenance |
| Color Temperature/Luminance Uniformity | 3200-12000K Adjustable; ≥98% | 3200-12000K Adjustable; ≥98% | 3200-12000K Adjustable; ≥98% |
| Chromatic Uniformity | ± 0.003Cx, Cy | ± 0.003Cx, Cy | ± 0.003Cx, Cy |
| Horizontal/Vertical View | ≥170° / ≥140° | ≥170° / ≥140° | ≥170° / ≥140° |
| Single-point Color Correction | Yes | Yes | Yes |
| Single Point Brightness Correction | Yes | Yes | Yes |
| Standard Receiver Card | A8S-N | A8S-N | A8S-N |
| Frame Rate(Hz) | 50/60 | 50/60 | 50/60 |
| Protection Level | IP64 | IP64 | IP64 |
| Signal Interface Mode | RJ45 | RJ45 | RJ45 |
| Power Interface Method | Connector | Connector | Connector |
| Input Voltage Range AC(V) | 100-240 | 100-240 | 100-240 |
| Peak Power Consumption(W/m²) | ≤680 | ≤680 | ≤680 |
| Average Power Consumption(W/m²) | ≤310 | ≤310 | ≤310 |
| Working Temperature and Humidity Range | -20°C~+50°C, 10%~95%RH | -20°C~+50°C, 10%~95%RH | -20°C~+50°C, 10%~95%RH |
| Storage Temperature and Humidity Range | -40~+70°C, 10%~95%RH | -40~+70°C, 10%~95%RH | -40~+70°C, 10%~95%RH |
| Service Life(H) | ≥100000 | ≥100000 | ≥100000 |
| Mean Time Between Failure(H) | ≥10000 | ≥10000 | ≥10000 |
Elevate your architectural vision with the ICR-O Series, a revolutionary Transparent LED Integrated Glass solution that merges high-definition digital media with structural glazing. Engineered for seamless integration, this “Ice Crystal” technology embeds micro-LEDs and driver chips directly into tempered glass using ITO transparent conductive materials, offering unmatched clarity, vivid color reproduction, and structural durability—ideal for landmarks, luxury retail, and high-end corporate facades
Record-Breaking Transparency – Achieve up to 99% light transmission (at P40 pitch), ensuring natural lighting and unobstructed views while maintaining a crystal-clear aesthetic when the display is inactive.
Invisible Circuitry Technology – Built with ITO (Indium Tin Oxide) transparent conductive layers, eliminating visible wires and bulky hardware for a sleek, “hidden” digital canvas.
Integrated “Sandwich” Engineering – Features a multi-layer tempered glass structure (6mm+3mm+6mm) that shields LEDs from humidity, dust, and external impacts within a vacuum-sealed, high-protection unit.
Large-Scale Seamless Display – Supports massive single-panel customizations (up to 2m wide x 6m high) to minimize structural seams and provide a continuous, high-impact storytelling surface.
Advanced Thermal & Energy Efficiency – Optimized for high-performance cooling with average power consumption as low as 120W/m², reducing operational costs while extending the system’s lifespan to 100,000 hours.
Dual-Sided Visual Impact – Engineered with double-sided display capabilities, allowing your media content to be visible both from the street and within the interior space.
Pro-Grade Control Compatibility – Full integration with industry-standard DMX512, NovaStar, Colorlight, and SPI protocols for precise, real-time synchronization of complex visual effects.
Architectural Resilience – IP65-rated and built with UV-resistant super-white tempered glass, ensuring reliable performance in harsh outdoor environments and temperature extremes from -10°C to +40°C.
