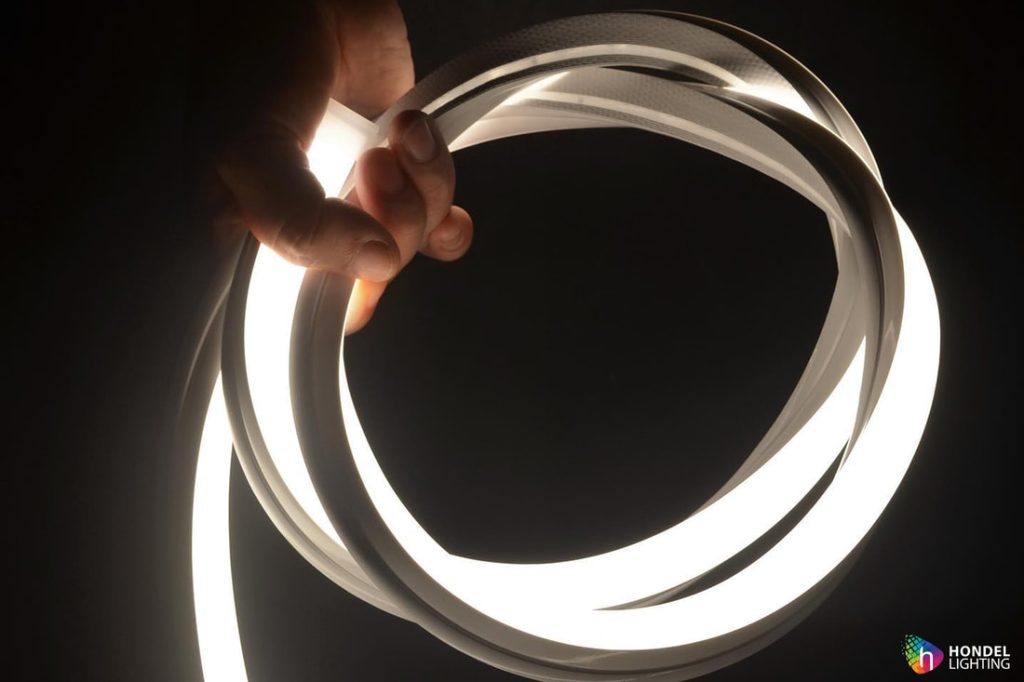

LED Neon Flex

Luminaire Ref: HD-N1317

neon flex china
neon flex china
neon flex china

Wide Range of Color Output

RED

GREEN

BLUE

AMBER

RGB

RGBW

2700K

4000K

5000K

TUNABLE WHITE

5 Years Warranty

CE Certified

IP67

Specs

Product technical parameters

Working Voltage

24V DC / 12V DC

Light Profile

Plane Surface

Size(W*H)

12X20mm

Lighting Color

Red | Blue | Green | Amber | Orange | Purple

Lighting CCT

White | Warm White | Natural White | Cool White

Control Color

Single Color / Dimming / CCT

LCD Type

SMD 2835(Single Color) SMD 4040(RGB)

Rated Power/m

11W(Single Color) 15W(RGB)

FPC Light Direction

Vertical

Continuous Length
(Single End Feeding)

5m

Continuous Length
(Double Ends Feeding)

10m

IP Rating

IP68

working temperature

-20℃~60℃

LED Qty/m

126LEDs(Single Color) 72LEDs(RGB)

Min.Cutting Unit

7LEDs(Single Color) 6LEDs(RGB)

Min.Cutting Length

55mm Min.Cutting Length (24VDC)

neon flex china
neon flex china
neon flex china

Product Features

  • The Neon Flex HD-N1220 with Constant Current Can connect up to 28 Meters in series with one power supply without voltage drop. It provides hassle-free installation also saves time for the installation team.
  • LED Neon Flex HD-N1220, IP68, With Vertical Bending.
  • Front / Side and Bottom Injected Mold Connector with complete safety
  • UV Resistant, Salt Water Resistant & High temperature resistant via opal silicon Coating
  • Uniform and even light output, Flat surface with 120 degree beam angle
  • Exclusive end cap design , Full encapsulated with IP68 Level
  • Various customization options including fixture length, color, and pixel configuration
  • Flexible mounting capability
neon flex china
neon flex china
neon flex china
neon flex china

Size

Bottom Injected Mold Connector

Side Injected Mold Connector

Front Injected Mold Connector

Installation Accessories

neon flex china
neon flex china
neon flex china

SS Mounting Clips

Aluminum Profile

Flexible Steel Profile

neon flex china
neon flex china
neon flex china
neon flex china
neon flex china
neon flex china

Application:

neon flex china
neon flex china
neon flex china
