Pixel Dot Light

Luminaire Ref: HD-D0650

Pixel Dot Light

Luminaire Ref: HD-D0650

Pixel dot Light in China
Pixel dot Light in China

Wide Range of Color Output

RED

GREEN

BLUE

AMBER

RGB

RGBW

2700K

4000K

5000K

TUNABLE WHITE

RED

GREEN

BLUE

AMBER

RGB

RGBW

2700K

4000K

5 Years Warranty

CE Certified

IP67

Specs

5 Years Warranty

CE Certified

CB Certified

IP65

Specs

Specifications:

LED Pixel dot light source using imported CREE or Osram led chips, built-in microcomputer chip, arbitrary programming control, multiple synchronous changes, monochrome changes can also be achieved synchronous colorful gradient jump.
Elegant appearance, easy to control, Installation, Maintenance more convenient.



  • The new generation DMX512 Pixel Dot Light parallel general circuit technical design, a single dot light for an independent pixel , each pixel can achieve 256 gray changes, bad on does not affect the next one, before and after the signal has no effect.



  • Protection level IP66 to IP68, Dot light between the adoption of body no join design, anti drag design, easy installation and maintenance.



  • High safety performance, flame retardant grade V-0, Can be achieved from the fire extinguisher.



  • Our dot light, strong weather ability, anti-ultraviolet, resistance to hot and cold deformation, anti-static. Design forming process for outdoor use 20 years without self cracking.



  • The body material made of Anti-UV PC material, Excellent transmittance, low carbon environmental protection, energy saving and efficient.











  • Model HD-D0650
  • LED Brand: CREE, Osram
  • Color: Single Color , RGB , RGBW
  • Maximum power: 1.5W
  • Size : D30*15mm
  • Light Source: 3535 LED
  • Material: UV Resistant PC
  • Surface Color: White / Black
  • Working temperature: -40°C to 55°C
  • Protection level: IP68
  • Working voltage: DC 5V, DC 12V , DC24V
  • Light beam angle: 120 to 180  [deg.]
  • Control Method: DMX512 / On Off
  • Application environment: Outdoor

Installation Option:

Application:

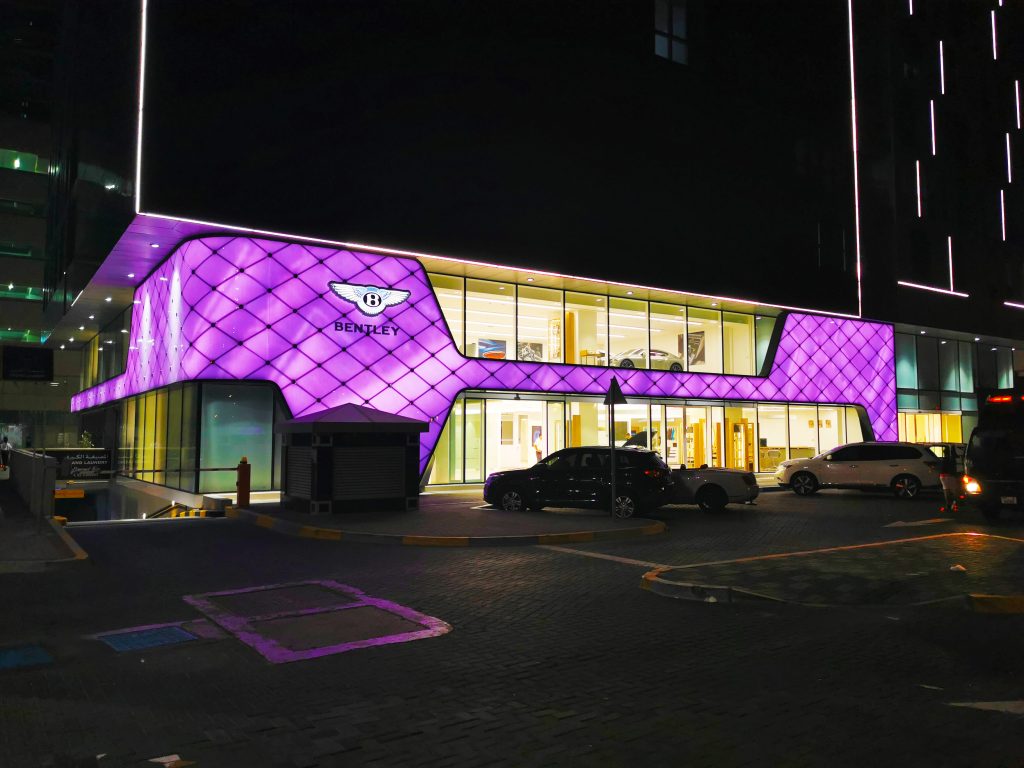

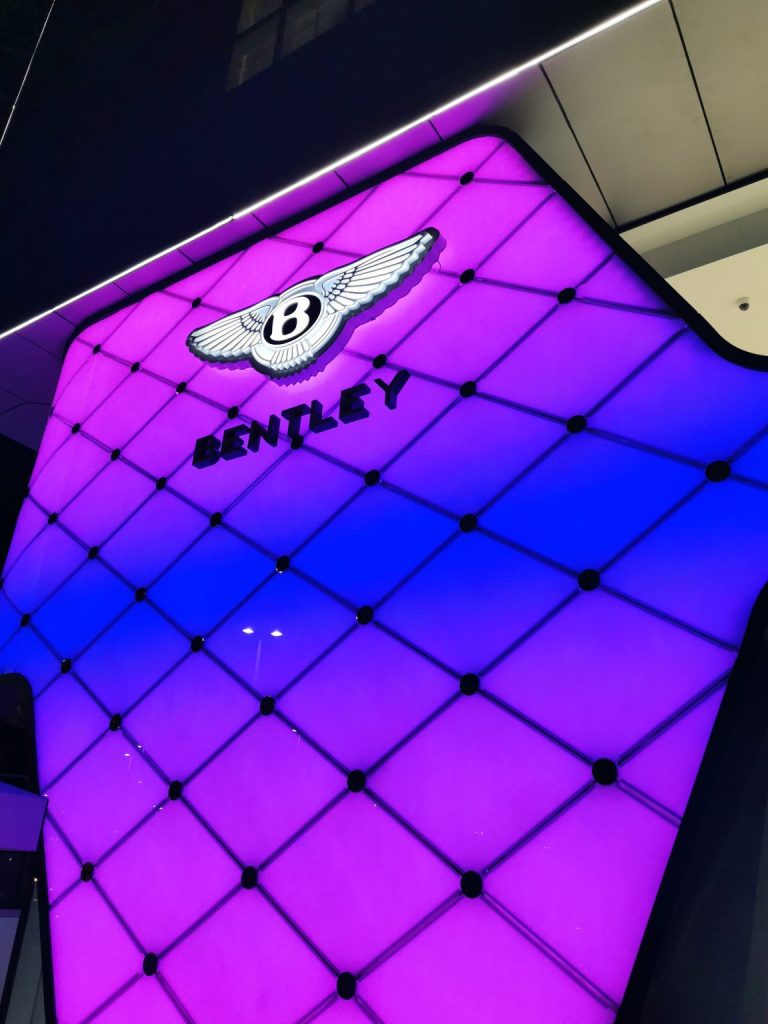

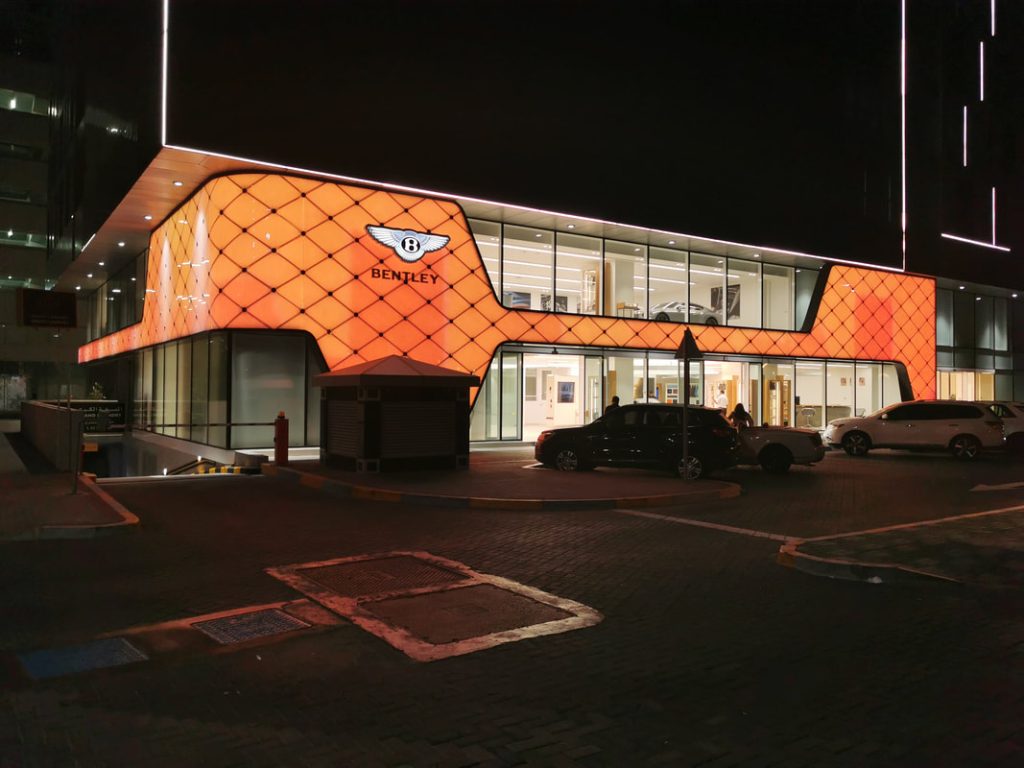

Media Facade Dubai
