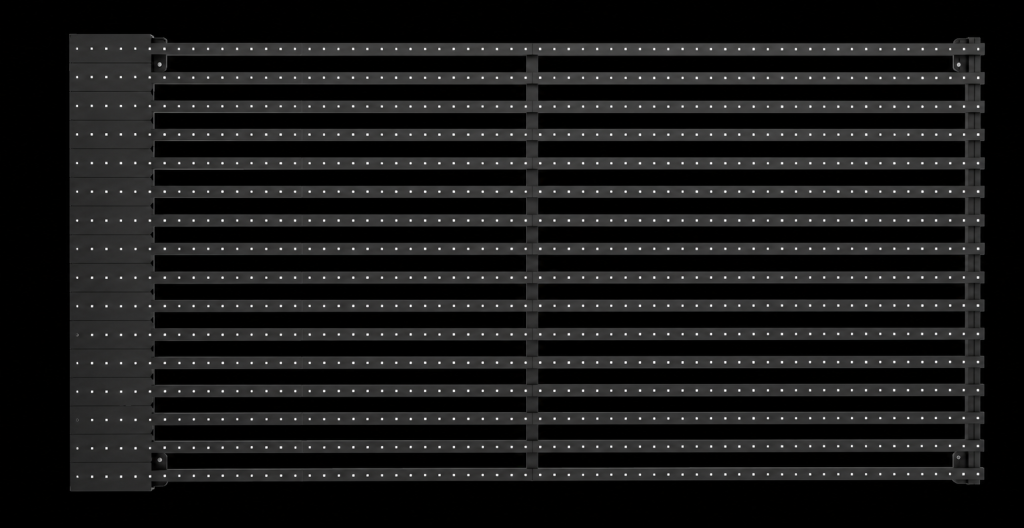

Discover the Sovix SA Series—Featuring Larger Modules, IP66 Waterproof Protection, and Full-Loop Signal Redundancy
| Model | OA-0815 | OA-1515 | OA-1225 | OA-2525 |
| LED | SMD2727 (lens) | SMD2727 (lens) | SMD2727 (lens) | SMD2727 (lens) |
| Module Material | Aluminum profile + Die-cast aluminum power box (customizable color) | |||
| Pixel Pitch | 7.81 mm / 15.625 mm | 15.625 mm / 15.625 mm | 12.5 mm / 25 mm | 25 mm / 25 mm |
| Resolution | 8192 dot/m² | 4096 dot/m² | 3200 dot/m² | 1600 dot/m² |
| Module Direction | Horizontal | Vertical | Horizontal | Vertical | Horizontal | Vertical | Horizontal | Vertical |
| Module Size | 1000×500mm ; 1500×500mm (Length can be customized) | |||
| Brightness | 8000nit – 10000nit | 8000nit – 10000nit | 8000nit – 10000nit | 8000nit – 10000nit |
| Permeability / Transparency | 48% | 48% | 64% | 64% |
| Weight | 16 kg/m² | 16 kg/m² | 12 kg/m² | 12 kg/m² |
| Input Voltage | AC 110 -240 V | AC 110 -240 V | AC 110 -240 V | AC 110 -240 V |
| Max Power Consumption | 300-360w/m² | 300-360w/m² | 300-360w/m² | 300-360w/m² |
| Installation Method | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Protection Level | IP66 | IP66 | IP66 | IP66 |
| Grayscale / Gray Level | RGB 65536 bit (3×16bit) | RGB 65536 bit (3×16bit) | RGB 65536 bit (3×16bit) | RGB 65536 bit (3×16bit) |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Frame Rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
| Working Environment | Temperature: -30°C to +50°C; Humidity: 10%-90% | |||
Elevate your architectural vision with the ICR-O Series, a revolutionary Transparent LED Integrated Glass solution that merges high-definition digital media with structural glazing. Engineered for seamless integration, this “Ice Crystal” technology embeds micro-LEDs and driver chips directly into tempered glass using ITO transparent conductive materials, offering unmatched clarity, vivid color reproduction, and structural durability—ideal for landmarks, luxury retail, and high-end corporate facades
Record-Breaking Transparency – Achieve up to 99% light transmission (at P40 pitch), ensuring natural lighting and unobstructed views while maintaining a crystal-clear aesthetic when the display is inactive.
Invisible Circuitry Technology – Built with ITO (Indium Tin Oxide) transparent conductive layers, eliminating visible wires and bulky hardware for a sleek, “hidden” digital canvas.
Integrated “Sandwich” Engineering – Features a multi-layer tempered glass structure (6mm+3mm+6mm) that shields LEDs from humidity, dust, and external impacts within a vacuum-sealed, high-protection unit.
Large-Scale Seamless Display – Supports massive single-panel customizations (up to 2m wide x 6m high) to minimize structural seams and provide a continuous, high-impact storytelling surface.
Advanced Thermal & Energy Efficiency – Optimized for high-performance cooling with average power consumption as low as 120W/m², reducing operational costs while extending the system’s lifespan to 100,000 hours.
Dual-Sided Visual Impact – Engineered with double-sided display capabilities, allowing your media content to be visible both from the street and within the interior space.
Pro-Grade Control Compatibility – Full integration with industry-standard DMX512, NovaStar, Colorlight, and SPI protocols for precise, real-time synchronization of complex visual effects.
Architectural Resilience – IP65-rated and built with UV-resistant super-white tempered glass, ensuring reliable performance in harsh outdoor environments and temperature extremes from -10°C to +40°C.
